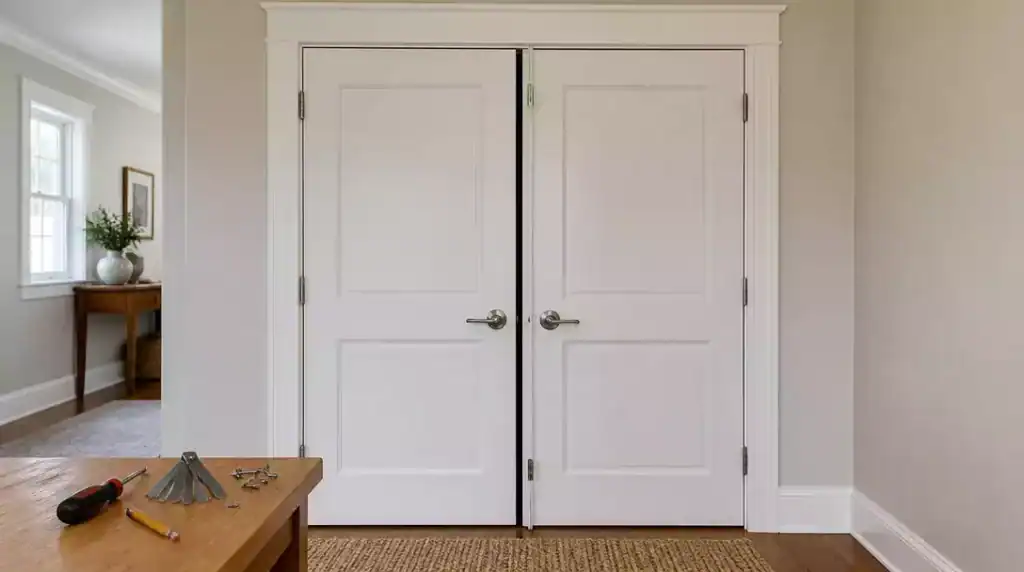

A visible strip of daylight between double doors can mean a small alignment or hardware issue – not a replacement decision. This guide narrows the diagnosis to six practical ideas so you can spend wisely and make one controlled correction at a time; start by recording what the gap is doing.
Find the Source of the Gap
A three-point reveal check turns a frustrating gap into a manageable repair plan.
As an Amazon Associate I earn from qualifying purchases. Affiliate links may earn me a commission at no extra cost to you.
Stand in front of the closed pair and look at the center reveal from top to bottom. One leaf may sit lower, the strip of daylight may widen toward one end, or the doors may meet until the final inch of travel and then stop short.
Diagnosis comes before adjustment. Changing the wrong part can create rubbing, latch failure, or a gap that returns after a few openings, so close both leaves slowly and record the reveal at the top, middle, and bottom.
Use a feeler gauge or thin steel rule and write each reading in millimetres. Record the hinge-side and latch-side reveals too; the widest point alone cannot tell you whether a leaf is sagging, the opening is inconsistent, or the meeting-edge hardware is causing the separation.
Measurement note: One installer reference describes a typical center clearance of 3–5 mm, with a 2-dollar coin serving as a rough gauge just under 3 mm. That is a reference point, not a universal rule for every double-door system.
Use the pattern and the operating clues to narrow the cause:
- Hinges: suspect them when one leaf hangs lower, a corner rubs, screws are loose or missing, or the center reveal changes sharply from top to bottom.
- Strike and latch: look here when the active leaf stops short, needs to be pushed or lifted, or the latch barely enters its opening.
- Flush bolts: check them when the inactive leaf moves, a bolt catches in its socket, or the pair closes only with force.
- Astragal: suspect the meeting-edge strip when the leaves align at the hinges and latch but the overlap is bowed, proud, or separated.
- Seal: inspect it when the doors meet before a soft strip contacts them, or pressing the strip changes the gap.
Walk the opening from top to bottom and look for a reveal that changes suddenly, visible warping, heavy rubbing, or an opening that does not appear consistent. Persistent misalignment belongs with a professional, especially when the leaves are visibly warped, the opening is badly out of square, the hardware is specialized or heavy-duty, or a small correction will not hold.
Photograph or mark the original positions of hinge plates, strikes, bolts, and astragal hardware before touching anything. Do not use caulk, expanding foam, or rigid fillers as diagnostic shortcuts; they can hide the cause and bind a moving center seam.
Keep the one-variable rule in view: make one small change, then test before moving to another component. If the reveal pattern points to a sagging or shifted leaf, inspect and adjust the hinges before moving the latch or adding material to the gap.
⭐ Top Hardware for Finding Door Gaps
✨ Editor’s Pick
Heavy-Duty Door Hinges for Double Doors
Stripped Hinge Screw Hole Repair Kit
Strike Plate Repair Kit with Shims
💡 Why This Record Matters:
Your three readings become a baseline for every later test. After an adjustment, you can tell whether the gap truly improved across the door or merely shifted from one end to another. That keeps a seal or filler from hiding a moving alignment problem and makes it easier to reverse a change that made operation worse.
Useful habit: Record each new top, middle, and bottom reading beside the original instead of relying on memory.
2. ADJUST THE HINGES
A supported, level door leaf brings the center seam back into a clean, controlled line.
One door leaf hangs lower, an upper or lower corner rubs, and the center gap widens unevenly as the pair closes. That pattern points toward the hinges, but hinge work moves the entire leaf, so use the top, middle, and bottom measurements from the first step instead of adjusting by sight.
Loose or missing fasteners are common causes, especially on a heavy leaf. A compressed or damaged mortise, mismatched hinge types, or inadequate reinforcement can let the door sag and pull the meeting stile out of parallel.
Use one hinge, one change, one test. Changing every hinge at once makes it nearly impossible to tell which move helped, and it can leave the door rubbing in a new place.
- Support the door with wedges before loosening any hinge screws. Keep your fingers clear of the hinge knuckles and the meeting edge; a heavy leaf can shift as soon as its fasteners lose tension.
- Tighten the existing screws and check that each hinge leaf sits fully inside its mortise. Look for a hinge that sits proud, a loose hole, or a fastener that is missing rather than assuming the door needs a larger adjustment.
- If a screw hole no longer holds, do not treat a larger screw as the whole repair. Badly stripped holes, damaged mortises, or missing reinforcement need professional attention before the hinge can support the leaf reliably.
- For a small shift, add a thin shim incrementally behind the hinge leaf. Cereal-box cardboard can serve as a very small temporary adjustment, but preserve enough screw-thread engagement for the fasteners to bite into sound material.
In some installations, replacing a hinge screw with one around 3 inches can pull the hinge more securely into the framing; another guide cites 2.5 or 3 inches. Treat that as installation-dependent guidance: the screw diameter and head size must match the existing hinge and hole pattern, so there is no universal specification.
Standard butt hinges can sometimes be adjusted by carefully spreading the hinge leaves or bending the knuckles with controlled force. This does not suit every hinge design, so work slowly, make a small change, retighten, remove the support carefully, and run a full open-close cycle before doing anything else.
Stop before forcing the hardware. Over-shimming, over-bending, lifting an unsupported heavy door, or ignoring a damaged mortise can create fresh rubbing and make latch alignment worse.
Repeat the measurement and cycle the doors again, checking for parallel meeting edges, scraping, binding, spring-back, and a gap that returns after the leaf is released. Once both leaves sit level and the center edges appear parallel, check whether the active leaf can pull into its final closed position; that points to the strike and latch next.
⭐ Door Hinges That Improve Alignment
Commercial Ball Bearing Door Hinges
✨ Editor’s Pick
Surface Mount Door Hinges with Pins
Self-Closing Spring Hinges for Doors
📈 The Long-Term Payoff:
A careful hinge correction is usually a maintenance choice, not a cosmetic shortcut. When the leaf sits properly, the meeting edges, latch, and remaining hardware can work without unnecessary rubbing or forced closure. That can reduce ongoing wear, although the research does not support a fixed lifespan or resale-value figure.
Worth prioritising: Spend attention on sound screw engagement and a stable hinge position before replacing visible trim or seals.
At this point, the next move does not need to be permanent. Choose the adjustment you can reverse easily, test it fully, and leave more involved hardware alone until the door’s response points there. The visible gap rarely requires every option at once. That keeps an expensive wrong turn from becoming a chain of compensating fixes.
🎯 Where to Focus:
- Start with measured hinge changes; see double-door designs for context.
- Use one change, one cycle before touching latch hardware.
- If alignment holds, move next to latch or bolts.
3. RESET THE STRIKE AND LATCH
A precise strike reset helps the active leaf close naturally and meet its partner cleanly.
A pair of doors can look level and still refuse to latch unless the active leaf is shoved inward or lifted. In that case, the leaf may be stopping short because the latch bolt is meeting the strike incorrectly, leaving the center gap visible even though the hinges are not the main problem.
Do not move the strike based on a visual guess. Coat the latch or bolt lightly with chalk, lipstick, or another transferable marker, then close the door gently and open it again.
Read the transfer mark on the strike opening:
- A high or low mark points to a vertical mismatch.
- An off-center mark shows that the plate needs a sideways correction.
- A mark outside the opening means the latch cannot enter freely in its current position.
Remove the strike plate and shift it only within the existing mortise when the correction is small. Mark the original outline first, drill new pilot holes, and reinstall the plate flush and snug rather than allowing it to sit proud of the jamb.
For a larger move, fill the old screw holes before relocating the plate. Wood plugs, dowels, toothpicks, or golf tees combined with wood glue can restore screw bite before redrilling; they are not a reason to enlarge the latch opening. Trim only enough wood for the latch to enter without dragging.
Move the plate to the transfer mark, not past it. The active leaf should close with normal hand pressure, the latch should enter cleanly, and the door should not rattle because the strike was set too far away.
Double-entry systems may use paired latch and deadbolt strike assemblies, and their dimensions vary by lockset and manufacturer. Avoid loosening one screw and letting the plate pivot; keep the original outline visible, make one controlled shift, and check engagement repeatedly before final tightening.
Once the latch pulls the active leaf fully into place without pushing or lifting, inspect the inactive leaf next. Its flush bolts may still allow the center gap to reopen if they are not holding the other door in position.
⭐ Strike Plates and Latches Worth Buying
Door Strike Plate Repair Kit with Shim
Commercial Brass Plated Door Strike
✨ Editor’s Pick
Keyed Entry Knob and Deadbolt Set
💡 Test the Lockset as a Pair:
On double-entry hardware, a latch can appear corrected while the deadbolt still meets its strike incorrectly. Cycle each independently, then confirm both engage with the door resting naturally. This catches a partial reset before the plate is considered finished and helps preserve dependable closure.
4. ALIGN THE FLUSH BOLTS
A correctly seated flush bolt keeps both leaves steady, level, and ready to close cleanly.
Start with the inactive leaf. Its edge may sit close to the active door, yet the center seam shifts as the flush bolt is thrown, or the bolt seats only after someone pushes the leaf into place.
The flush bolt holds the inactive leaf steady; it is not merely a secondary latch. It should throw with light one-hand pressure, enter its frame strike or floor socket squarely, seat without scraping or wedging, and keep the inactive leaf flush with the active leaf.
Mark from the bolt tip, not from the old hole. The existing keeper may have shifted, or the original opening may never have been centered for the door position you have now.
Inspect the entire assembly before moving anything. Look at:
- The bolt body and mortised pocket for a proud, crooked, or binding fit.
- The lever or actuator, rod, and guide for movement that feels stiff or works at an angle.
- The frame strike or floor socket for a keeper that no longer matches the bolt tip.
- The inactive leaf edge for movement when the bolt is thrown or released.
Apply paint or another transferable marking medium to the actual thrown bolt tip. Close the door gently, throw the bolt, reopen the door, and inspect the mark; it shows exactly where the keeper or socket needs to receive the bolt.
- Reposition the bolt body in its mortised pocket if it sits crooked or proud, keeping the bolt and receptacle on the same centerline.
- Move the frame strike or keeper only enough for square entry, then test-fit before fixing it permanently.
- For a floor socket, keep the opening only slightly larger than the bolt diameter and cut only the depth needed for full seating.
- Mortise a frame strike level with the surrounding surface so the bolt does not catch on a raised plate.
An oversized or overly deep socket gives the inactive leaf room to move, weakens the hold, and can make the bolt mechanism operate at an angle. Leave final tightening until you have closed, thrown, released, reopened, and reclosed the pair several times.
If the bolt body is being replaced, thread the rod to approximately the original depth so the existing lever geometry and holes remain usable. Do not force a bolt that catches; repeated pressure can damage the mechanism and hide a keeper-position problem.
Test the inactive leaf under normal operation. It should remain in position when locked, and the pair should close without pushing, lifting, scraping, or wedging the bolt into its socket.
Once the flush bolts hold the inactive leaf firmly but the meeting-edge profile still stands proud or leaves a narrow strip, stop adjusting the bolt. The remaining fit belongs to the astragal.
⭐ Flush Bolts for Double Door Alignment
✨ Editor’s Pick
Concealed Flush Bolts for French Doors
Solid Brass Surface Bolts for French Doors
Sliding Barrel Bolt Latch for Doors
Add or Replace the Astragal
A correctly fitted astragal helps the doors close cleanly while keeping hardware movement unobstructed.
Use an astragal only after the leaves sit level, the active latch engages, and the flush bolts hold the inactive leaf in place. If those parts work but the meeting edge is bowed, proud, missing its overlap, or still leaves a narrow strip between the doors, the astragal is the piece shaping that final fit.
An astragal is a meeting-edge strip that bridges the two leaves and controls how their profiles overlap. It cannot correct a sagging door or a latch that stops short; adding one too early can hide the real fault and create interference at the center seam.
Before ordering: identify the active and inactive leaves, confirm the handing and meeting-edge arrangement, and record the slab thickness and total door height. Astragal dimensions vary by door system, so a strip that looks close in a product photo can still land on the wrong leaf or block the hardware.
Standard double-door instructions generally place the astragal on the inactive or fixed leaf. Some reverse-bevel arrangements place it on the pull side of the active leaf, so follow the door system configuration instead of assuming the strip always belongs on one side.
- Check the door height and select a strip that matches the slab or can be cut to match exactly.
- Confirm the meeting-edge profile, overlap direction, slab thickness, and active or inactive leaf before drilling.
- Keep the latch, deadbolt, and flush-bolt paths completely clear.
- Treat system-specific dimensions as instructions for that system, not universal sizing rules.
For example, one Andersen system is designed for 1½-inch mortised doors, one guide references about 3/16 inch of overlap, and another calls for measuring 9/16 inch down from the top before cutting an astragal jamb. Those figures belong to their respective door systems; they do not establish a general astragal size for every pair of doors.
Remove the old strip, then dry-fit the replacement with both doors closed. Check the overlap, top alignment, bottom position, latch and deadbolt clearance, flush-bolt movement, and whether a brush insert touches firmly without resisting closure.
- Set the astragal flush with the top of the slab, or cut it to match the door height.
- Mark the fastener locations and predrill as directed for the system.
- Fasten vertically, reinstall caps, flush-bolt hardware, or weatherstrip, and leave final tightening until the fit is tested.
Orientation is the mistake that creates the most avoidable rework. Close the doors during the dry fit and test the overlap, bolt travel, and latch clearance before committing to the fasteners; a brush should narrow the open center line without becoming so tight that the pair cannot close.
⭐ Door Seals That Close Center Gaps
Self-Adhesive Door Weather Seal Strip
✨ Editor’s Pick
Wedge Door Weatherstrip for French Doors
Double-Lip Corner Seals for Door Gaps
💡 The Detail That Pulls It Together:
Treat the astragal as part of the door’s vertical rhythm, not an add-on. A profile that sits flat and follows the slab finish makes the center seam look intentional, while a proud or uneven strip catches light and draws attention to the gap you are trying to solve. Keep the visible edge simple and consistently aligned.
Seal the Remaining Gap
A lightly compressed seal closes the seam without fighting the door hardware.
Save sealing for the end. The doors should already align, the active latch should engage with normal hand pressure, and the inactive flush bolts should throw and seat smoothly before any strip goes on.
A narrow continuous line that still admits light or a draft can usually take a soft, compressible astragal, narrow adhesive weatherstripping, or a pair of compression seals sized to the measured gap. Flexible foam, rubber, and silicone profiles are supported options; rubber and silicone generally hold up better than basic foam tape, but any adhesive depends heavily on a clean, residue-free surface.
Use compression, not resistance. The seal should fill the largest remaining gap along the run without buckling, forcing the leaves apart, resisting the latch, or blocking the flush bolts.
Measure with both leaves fully closed and aligned, then choose a profile that compresses lightly rather than one that has to be crushed into place. One perimeter-weatherstripping guide cites a 3/8-inch maximum, but that figure applies to the perimeter product described there, not to every double-door center seam.
- Clean the meeting edge and remove old adhesive or residue.
- Cut the seal and dry-fit it along the full run.
- Apply it to one meeting edge or the astragal location.
- Press it firmly from top to bottom so it adheres continuously.
- Open and close both doors several times before judging the result.
Use the hand-pressure test after installation: the leaves should still meet without excessive force, and pressing the seal should not noticeably change their alignment. Check the full length for peeling, buckling, flattening, tearing, rubbing, or adhesive failure, then throw the latch and flush bolts repeatedly.
Do not mask a moving center seam. Caulk, expanding foam, rigid wood additions, and framing patches can bind the doors or conceal the alignment problem that caused the gap.
The repair is complete only when the gap is reduced, the seal supports the meeting edge, and the latch and bolts cycle normally. If the new strip makes closure harder, pushes the doors apart, or changes the reveal when pressed, remove it and return to alignment checks rather than adding more material.
⭐ Draft Stoppers for Remaining Door Gaps
Adjustable Door Bottom Draft Stopper
Adhesive Door Corner Seals for Drafts
✨ Editor’s Pick
Foam Weatherstripping Tape for Door Gaps
💡 Why a Flexible Seal Works
A flexible seal provides a forgiving contact point when small seasonal movement or minor variation remains after alignment. It can close the visual line without turning the meeting stile into a rigid pressure point, helping preserve smooth daily operation while reducing air leakage through the seam.
Practical takeaway: Choose compliance that accommodates the doors; never use sealing material to force their position.
With the full diagnostic sequence in front of you, What to Do When Double Doors Leave an Awkward Gap in the Middle becomes a manageable alignment decision rather than an automatic replacement problem. Start with the top, middle, and bottom reveal, then follow the evidence: position the leaf, correct the latch, steady the inactive door, refine the meeting edge, and seal only what remains. You do not need to make every adjustment; the component causing the symptom is the one worth addressing.
Support the door, make one controlled change, preserve sound screw engagement, and cycle the pair before deciding what comes next. Record the readings and begin with the one or two corrections most relevant to your home. If misalignment persists, the opening is badly out of square, the leaves are warped or rubbing heavily, the hardware is specialized, or an adjustment will not hold, bring in a professional. A clean center seam comes from accurate diagnosis – not from masking movement with caulk, expanding foam, or rigid filler.
