Door Too Close to the Wall for Trim? 3 Ways to Fix It

Fix it · 5 min read · Updated October 2026

When a door sits too close to a wall for standard trim, you have three fixes: narrower trim, trim you rip down to fit, or an extension that brings a set-back jamb out to the wall.

Which one you need comes down to two measurements. How much wall is left beside the jamb, and how far the jamb sits from the drywall face.

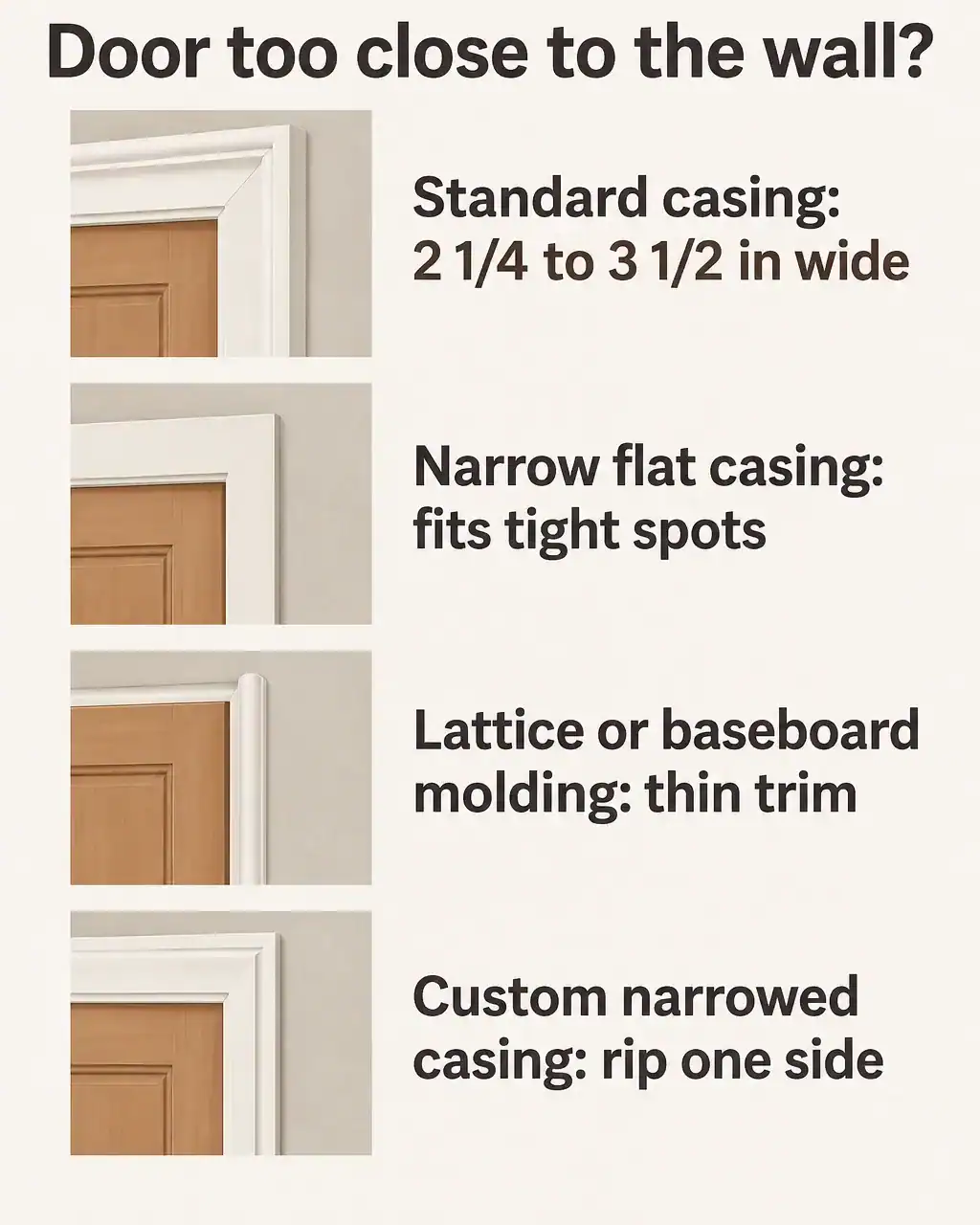

Chart of trim options for a door close to a wall: standard casing 2 1/4 to 3 1/2 inches wide, narrow flat casing, lattice or baseboard molding, and custom narrowed casing — Standard casing is the widest option, so tight spots call for something narrower. Sources: Angi, HomeSteady, A Concord Carpenter.

Table of Contents

Why standard casing won’t fit

Angi’s casing size guide puts door casing at 2 1/4 to 3 1/2 inches wide, with 2 1/4 inches as the standard. Anything wider is a custom order.

That is a lot of trim for a door tucked near a corner or a hallway wall. HomeSteady notes that most casing is over 2 inches wide, so when the jamb sits right against a corner, standard casing will not fit.

Even when it just fits, a thin strip of wall left between the casing and the corner is hard to paint cleanly.

Measure before you buy anything

Start with the space beside the jamb, then the depth from the jamb to the drywall face. Take each reading at more than one height, because walls are rarely plumb.

Measure from the jamb edge to the corner or wall at the floor, the middle and the top. Write down every number.
Decide on a reveal, the small step between the jamb edge and the casing. The carpenter at A Concord Carpenter uses 3/16 inch.
Measure from the jamb edge to the drywall face at several spots. The largest reading is the depth you may need to fill.
Compare the smallest space with the casing width you want. If the casing is wider, pick a fix below.

The three fixes

Sources: HomeSteady (alternative trim, custom casing), A Concord Carpenter (ripped casing), Hunker (jamb extension).
Your situation	Fix
Almost no wall beside the jamb	Baseboard molding or lattice strip as thin trim
Some wall, but less than the casing is wide	Casing ripped down on site, scribed to the wall
Jamb sits back from the drywall face	Jamb extensions from a ripped 1-by-4

These are not either-or. A set-back jamb in a tight spot can need an extension and a narrowed casing.

Fix 1: Use thinner trim

HomeSteady says baseboard molding and lattice strips can cover the gap between jamb and wall. They are thinner and less decorative than regular casing, but a narrow piece does the job.

I would try this first when the space is tiny and the room is a hallway or closet, where no one studies the trim.

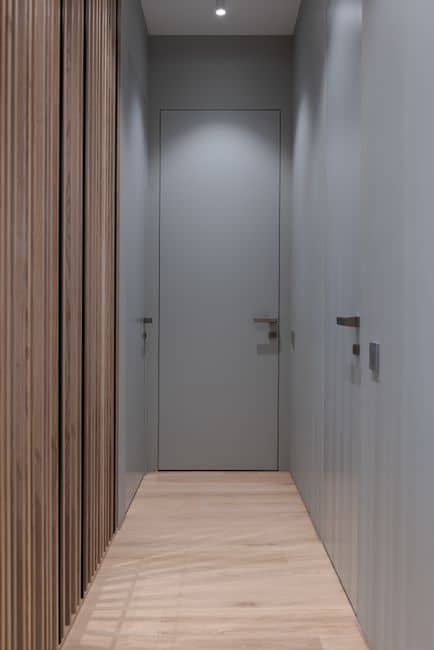

A narrow bright hallway with gray doors close to the walls — Doors set close to walls are common in narrow halls. Photo: Max Vakhtbovych on Pexels.

Fix 2: Rip the casing to fit

For a good-looking result, keep the profile and narrow the casing. Robert Robillard’s walkthrough deals with 3 1/2 inch casing and only 3 inches of room on one side and 2 1/2 inches on the other.

He builds narrower casing from flat 3/4 inch poplar and routs a 3/8 inch bead on the long edge to match the profile. Trimming standard casing would leave uneven reveals and lose the profile.

On the sides, he rips the board to the largest measured width with the saw blade at a 10 degree bevel. The bevel makes a point that touches the wall, away from a rounded plaster corner.

Then he holds the board plumb against the wall, scribes the gap, cuts to the line at the same bevel and fine-tunes with a hand plane.

The top casing stays full width. Because the walls are uneven, one end gets a miter and the other a square cut, and the whole piece is glued and nailed to the wall and jamb once it fits.

HomeSteady adds one rule: mill every piece the same way, or the differences show.

Fix 3: Extend a set-back jamb

If the jamb stops short of the drywall face, trim has nothing to sit against. The fix is a jamb extension, a strip that fills the gap.

Diagram of a door jamb extension: measure the gap to the drywall at several spots, rip a 1-by-4 to the largest gap, cut three pieces, glue and nail at least 1 inch into the jamb — Use the largest gap as the strip width. Source: Hunker, How To Extend A Doorjamb.

Hunker’s guide has you measure from the jamb edge to the drywall face at several spots and use the largest reading as the thickness. Rip a 1-by-4 to that width.

Cut three pieces: two for the sides and one for the top. Glue the back of each, set it flush with the side of the jamb and drive finish nails through it so they go at least 1 inch into the jamb.

If the hinges stop it sitting flush, set the pieces back 1/4 inch. For a door that is out of plumb, plane the parts that stand proud of the wall.

Set the fence with a tape measure, not the scale on the saw. Use the blade guard and a push stick on narrow strips.

Test the tight side first · James Davis

I would test fit at the tightest spot before cutting anything long. If the narrow side works, every other spot is easier. If the jamb is far back from the wall, or the opening is badly out of square, I would bring in a carpenter rather than stack fixes.
